Designed for metering, filling various kinds of granular/solid products, such as snack, sunflower seeds, peanuts, nuts, candy... etc., into bags/sachets.
Range of filling and metering: 3-50 pc/bag.
Range of filling and metering: 3-50 pc/bag.

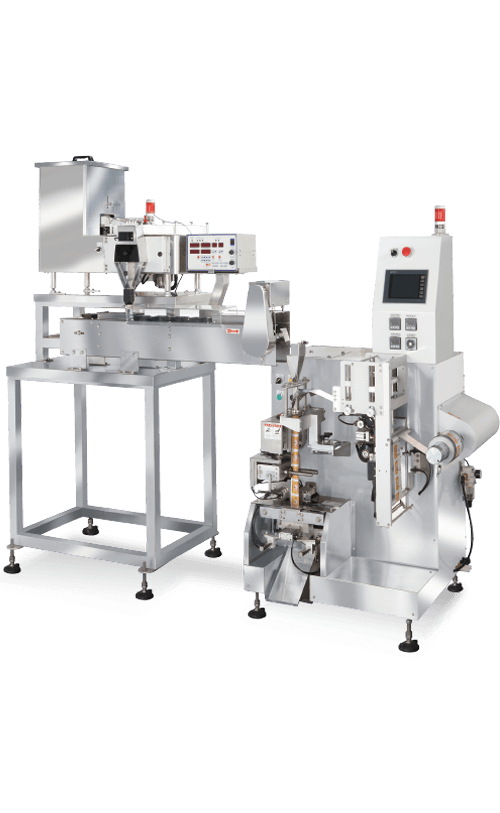

Model :
CYP-01-C
| Model | CYP-01-C | |
| Machine Type | Automatic Forming,Filling,Sealing,Machine - Granular Packing Machine | |
| Filling Rang | Filling Range：3-50pcs | |
| Capacity | 30~50 bags/min(Vary with different products, and filling weight.) | |
| Packing Way | 3-side sealing, 4-side sealing,3-side back sealing | |
| Range of Packaging Film Sizes (Product Sizes) |
W: 40~120 mm L: 60~165 mm |
|
| Machine Size | L1800*W1000*H1750 mm | |
| Machine Weight | 350KG | |
| Air Pressure | 6-8 kg/cm2 | |
| Power | 220V,3Ø,7.5HP,50/60Hz | |
Suitable for filling various kinds of
particle/granular products with counting function.
Press-close type sealing mechanism by air operated for ensuring smooth appearance of product without pin-hole problem. No material exists at sealing position that assures superior tightness of sealing.
Printing point photocell sensor is easy to adjust for eliminating waste of packaging film. Or simply input packaging length for the same purpose.
Minimum sealing temperature variation. Employ PID calculation to maintain temperature tolerance within ±2˚C.
Self-diagnostic function. Whenever there’s an error occurs, such as no packaging film, no color tape, photocell sensor error, excessive or under sealing temperature or air pressure failure... etc., the machine will stop automatically, and the screen will display the problem points and trouble-shooting instructions.
Transmission system of the filling machine is driven by Japan Mitsubishi servo motor for high accuracy and stability.
10 sets of memory modules for memorizing different kinds of products and filling values.
HMI touch screen for operational control.
All air cylinders employ Japan (SMC) for dependable quality and stability.
Japan Mitsubishi PLC.
Perforating packaging function device is available to be added on. (Two or three packaging perforating.)
Bucket conveying system employs Servo transmission motor.
Press-close type sealing mechanism by air operated for ensuring smooth appearance of product without pin-hole problem. No material exists at sealing position that assures superior tightness of sealing.
Printing point photocell sensor is easy to adjust for eliminating waste of packaging film. Or simply input packaging length for the same purpose.
Minimum sealing temperature variation. Employ PID calculation to maintain temperature tolerance within ±2˚C.
Self-diagnostic function. Whenever there’s an error occurs, such as no packaging film, no color tape, photocell sensor error, excessive or under sealing temperature or air pressure failure... etc., the machine will stop automatically, and the screen will display the problem points and trouble-shooting instructions.
Transmission system of the filling machine is driven by Japan Mitsubishi servo motor for high accuracy and stability.
10 sets of memory modules for memorizing different kinds of products and filling values.
HMI touch screen for operational control.
All air cylinders employ Japan (SMC) for dependable quality and stability.
Japan Mitsubishi PLC.
Perforating packaging function device is available to be added on. (Two or three packaging perforating.)
Bucket conveying system employs Servo transmission motor.
Designed for metering, filling various kinds of granular/solid products, such as snack, sunflower seeds, peanuts, nuts, candy... etc., into bags/sachets.
Range of filling and metering: 3-50 pc/bag.
