Design for packing pastry, especially for the pastry is soft easy to get damage, example Dorayaki, special shape cake, hamberger...etc
Model :
CYP-BH90
| Model Number | CYP-BH90 |

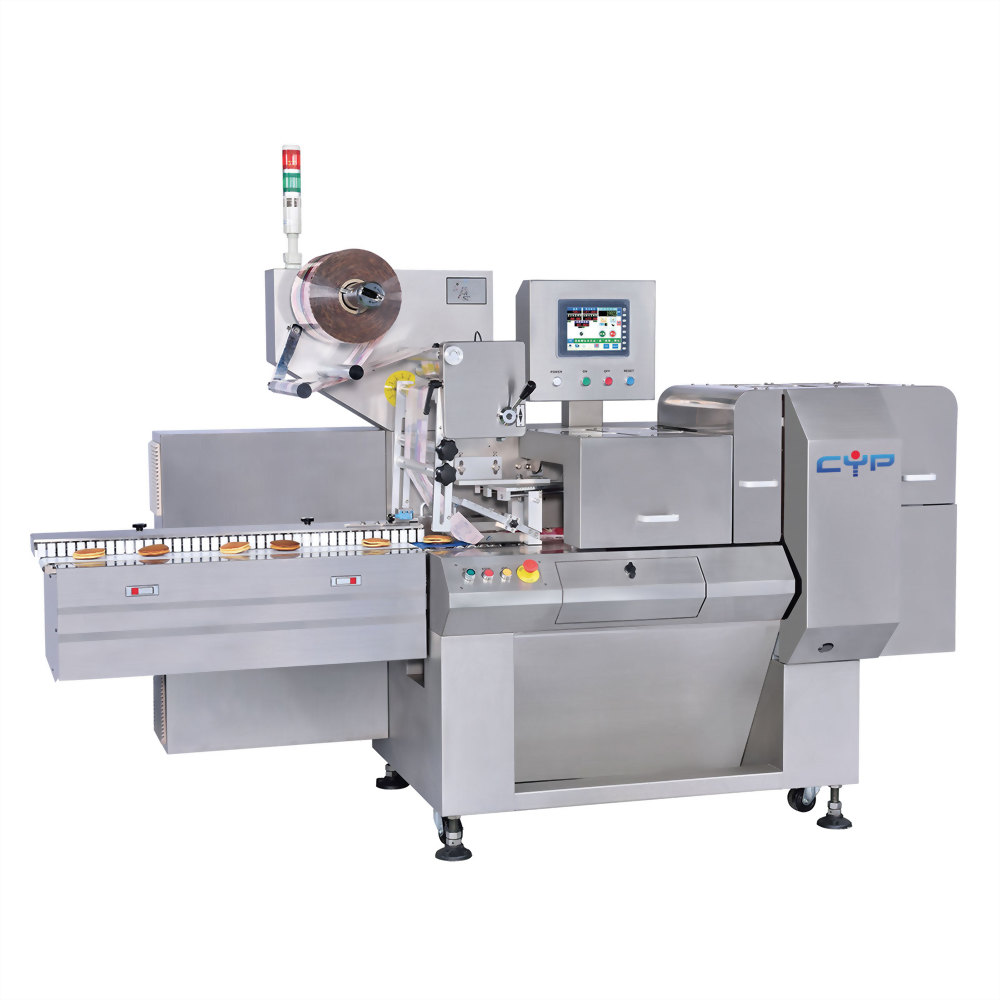

| Machine Type | Auto Belt type Horizontal Packing Machine |
| Capacity | 20 - 60 bags/Min（Depends on your product） |
| Bag Length | 100 - 230 mm |
|
Max. Film Width (max. roll dia.) |
430 mm (300 mm) |
| Product Width (max.) | 20 - 120 mm |
| Product Height | Max. 90 mm |
| Power | Single Phase, 220V, 4,500W |
| Machine Dimensions | L2650*W1050*H1820mm |
Smart Auto Infeed Belt Conveyor
No Touch No Damage
8.4-inch control screen
2 Sets of independent servo motor, the feeding position is accurate and the machine is easy to set and adjust.
50 sets of product memories
4 independent PID temperature controllers
PLC Control
Adjustable bag former
Design for packing pastry, especially for the pastry is soft easy to get damage, example Dorayaki, special shape cake, hamberger...etc
