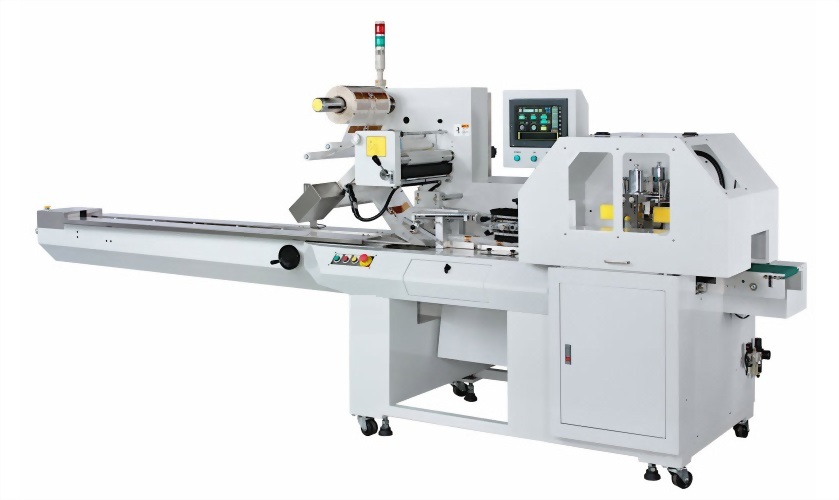

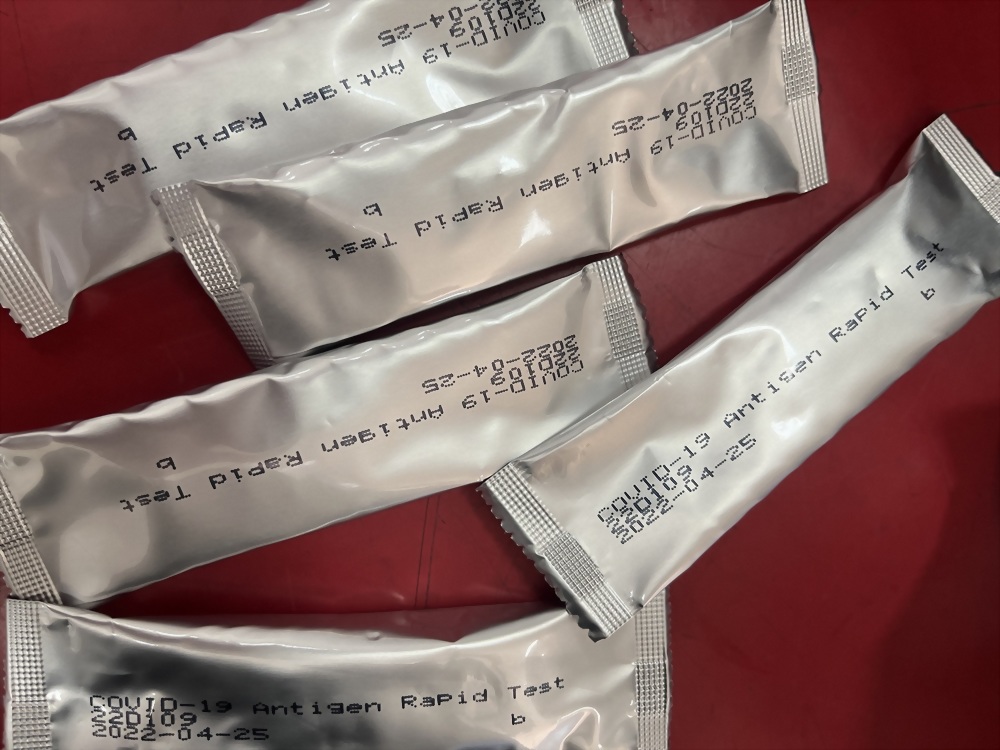

Specially used for packaging COVID-19 rapid test/pregnancy test sticks/electronic pregnancy test sticks
Model :
CYP-RT85
| Model | CYP-RT85 |
| Machine Type | COVID-19 rapid test packing machine |
| Capacity | 20 - 60 bags/min（Depends on your product） |
| Bag Length | 130 - 360 mm |
|
Max. Film Width (max. roll dia.) |
430 mm (300 mm) |
| Product Width (max.) | 20 - 120 mm |
| Product Height | Max. 100 mm |
| Power | Single Phase, 220V, 4,500W |
| Machine Dimensions | L3820*W950*H1560mm |
Customized auto feeder
Tight and airless packed pouch easy for 2nd cartooning packaging
Apply with food degree Mobil lubrication.
All product contact area with SUS304 (allowed to provide MOA, Mertificate of Analysis)
Pusher material as POM (Approved by SGS for FDA standard and allow to provide COA.)
User-friendly human machine interface control with 4.3inch touch screen for convenient operations.
Compact construction for reducing space required.
Bag length indication ensures fast and accurate length adjustment.
Optional feeding systems are available for various products.
Equipped with precision photocell sensor for film tracing control.
The machine stops automatically when the film runs out.
Four sets of temperature controllers.
All product-contacted areas are in stainless steel or plastic construction.
Tight and airless packed pouch easy for 2nd cartooning packaging
Apply with food degree Mobil lubrication.
All product contact area with SUS304 (allowed to provide MOA, Mertificate of Analysis)
Pusher material as POM (Approved by SGS for FDA standard and allow to provide COA.)
User-friendly human machine interface control with 4.3inch touch screen for convenient operations.
Compact construction for reducing space required.
Bag length indication ensures fast and accurate length adjustment.
Optional feeding systems are available for various products.
Equipped with precision photocell sensor for film tracing control.
The machine stops automatically when the film runs out.
Four sets of temperature controllers.
All product-contacted areas are in stainless steel or plastic construction.
Specially used for packaging COVID-19 rapid test/pregnancy test sticks/electronic pregnancy test sticks
