It can pack flow and non-flowable power, Example Flour, Black Coffee Powder, Milk Powder,3 in 1 Coffee Powder, Probiotics, Whey Protein Powder, Jelly Powder, Milk Tea Powder...etc
Model :
CYP-1618/CYP-8015
| Model | CYP-1618 | CYP-8015 |

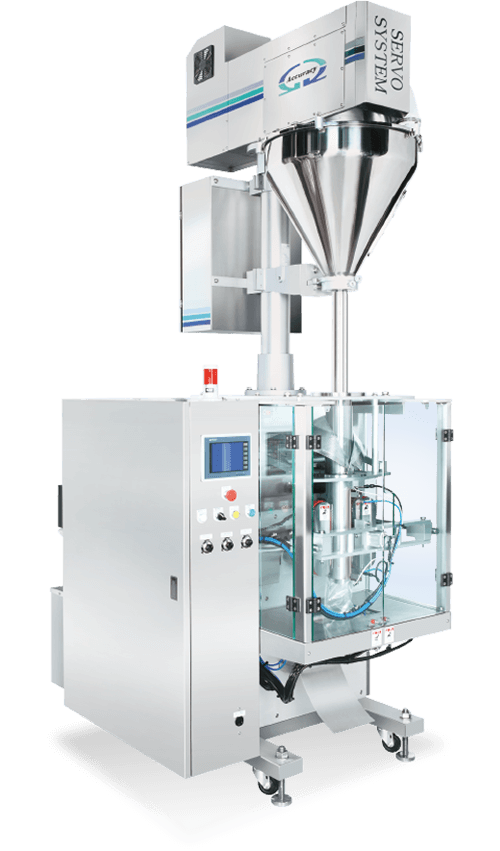

| Machine Type | Automatic Forming-Filling-Sealing Machine - Powder | Automatic Forming-Filling-Sealing Machine - Powder |
| Filling Rang |
Filling
Range：600-2000 g （Need to change the screw） |
Filling
Range：50-600 g （Need to change the screw） |
| Capacity | 20~45 bags/min(Vary with different products, and filling weight.) | 20~45 bags/min(Vary with different products, and filling weight.) |
| Packing Way | 3 side back sealing、Gusset | 3 side back sealing、Gusset |
| Range of Packaging Film Sizes (Product Sizes) |
W:
160~240 mm L: 180~350 mm |
W: 80~160
mm L: 150~250 mm |
| Machine Size | L1,250*W1,650*H3,200 mm | L1,100*W1,500*H2,900 mm |
| Machine Weight | 750KG | 600KG |
| Air Pressure | 6-8 kg/cm2 | 6-8 kg/cm2 |
| Power | 220V,3Ø,7.5HP,50/60Hz | 220V,3Ø,7.5HP,50/60Hz |
Press-close type sealing mechanism by air
operated for ensuring smooth appearance of product without pin-hole problem.
No material exists at sealing position that assures superior tightness of
sealing.
Printing point photocell sensor is easy to adjust for eliminating waste of packaging film. Or simply input packaging length for the same purpose.
Minimum sealing temperature variation. Employ PID calculation to maintain temperature tolerance within ±2˚C.
Self-diagnostic function. Whenever there’s an error occurs, such as no packaging film, no color tape, photocell sensor error, excessive or under sealing temperature or air pressure failure... etc, the machine will stop automatically, and the screen will display the problem points and trouble-shooting instructions.
Nitrogen gas filling device is available to be added on for allowing the oxygen existing in product to be controlled within fewer than 2%.
Strip packaging is available.
Transmission system of the filling machine is driven by Japan Mitsubishi servo motor for high accuracy and stability.
10 sets of memory modules for memorizing different kinds of products and filling weights.
HMI touch screen for operational control.
All air cylinders employ Japan (SMC) for dependable quality and stability.
Japan Mitsubishi PLC.
Material storage tank is 14L. (Available to connect with a material supply system.)
Printing point photocell sensor is easy to adjust for eliminating waste of packaging film. Or simply input packaging length for the same purpose.
Minimum sealing temperature variation. Employ PID calculation to maintain temperature tolerance within ±2˚C.
Self-diagnostic function. Whenever there’s an error occurs, such as no packaging film, no color tape, photocell sensor error, excessive or under sealing temperature or air pressure failure... etc, the machine will stop automatically, and the screen will display the problem points and trouble-shooting instructions.
Nitrogen gas filling device is available to be added on for allowing the oxygen existing in product to be controlled within fewer than 2%.
Strip packaging is available.
Transmission system of the filling machine is driven by Japan Mitsubishi servo motor for high accuracy and stability.
10 sets of memory modules for memorizing different kinds of products and filling weights.
HMI touch screen for operational control.
All air cylinders employ Japan (SMC) for dependable quality and stability.
Japan Mitsubishi PLC.
Material storage tank is 14L. (Available to connect with a material supply system.)
It can pack flow and non-flowable power,Example Flour, Black Coffee Powder, Milk Powder,3 in 1 Coffee Powder, Probiotics, Whey Protein Powder, Jelly Powder, Milk Tea Powder...etc
