MODEL	CYP-FMH	CYP-FHML

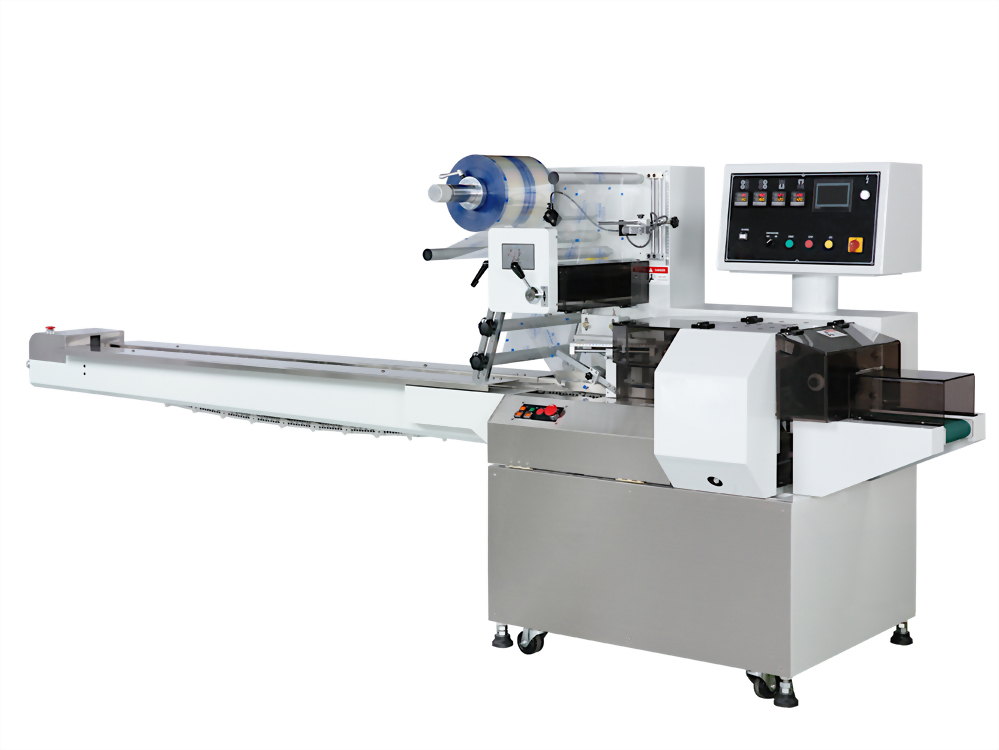

Machine Type	Auto High Capacity Face Mask Packing Machine	Auto High Capacity Face Mask Packing Machine
Capacity	20 - 120 bag/min（Depends on your product）	20 - 100 bag/min（Depends on your product）
Bag Length	80 - 320 mm	100 - 400 mm
Max. Film Width (max. roll dia.)	450 mm  (300 mm)	600 mm  (350 mm)
Product Width (max.)	20 - 120 mm (50 - 150 mm)	80 - 230 mm (110 - 270 mm)
Product Height	Max. 60 mm (90mm)	Max. 60 mm (110mm)
Power	Single phase, 220V, 4,500W	Single phase, 220V, 4,500W
Machine Dimensions	L3820*W950*H1560mm	L3820*W1080*H1560mm

Assistance brush to remove extra air out during the packaging process.

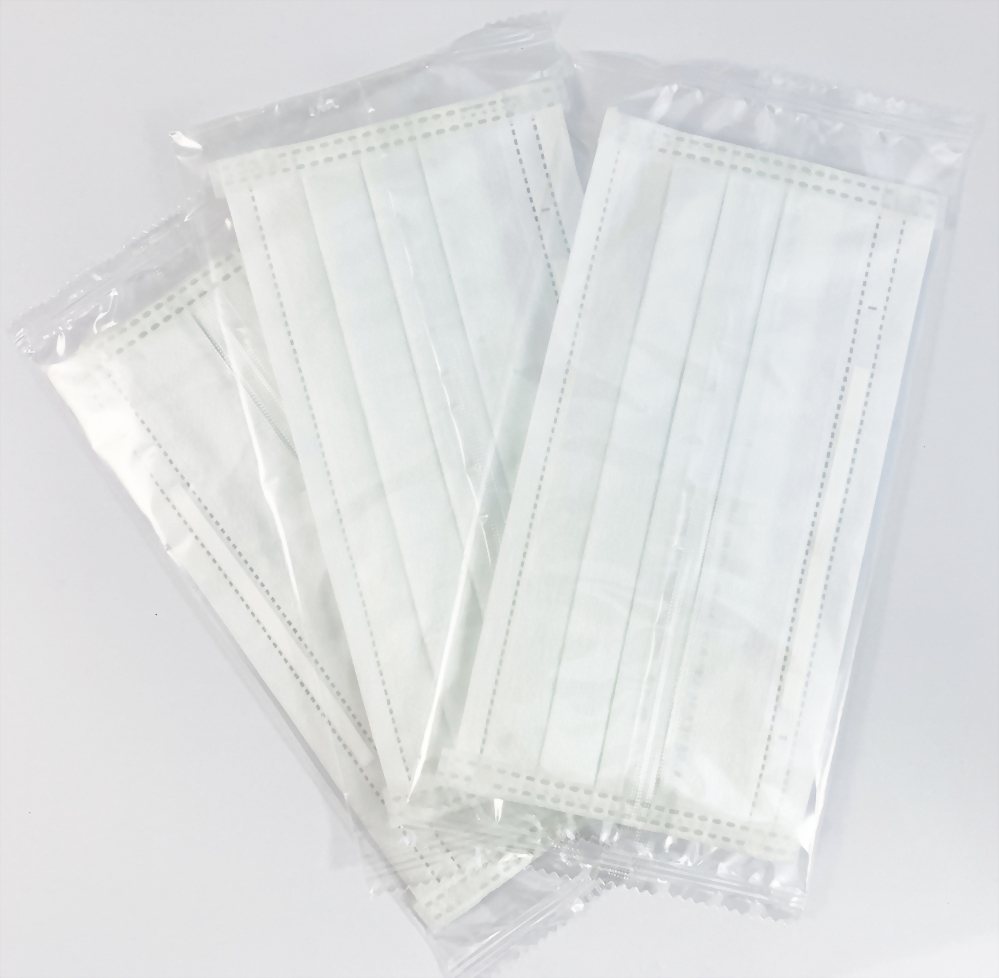

Tight and airless packed pouch easy for 2nd cartooning packaging
Apply with food degree Mobil lubrication.
All product contact area with SUS304 (allowed to provide MOA, Mertificate of Analysis)
Pusher material as POM (Approved by SGS for FDA standard and allow to provide COA.)
User-friendly human machine interface control with 4.3inch touch screen for convenient operations.
Compact construction for reducing space required.
Bag length indication ensures fast and accurate length adjustment.
Optional feeding systems are available for various products.
Equipped with precision photocell sensor for film tracing control.
The machine stops automatically when the film runs out.
Four sets of temperature controllers.
All product-contacted areas are in stainless steel or plastic construction.

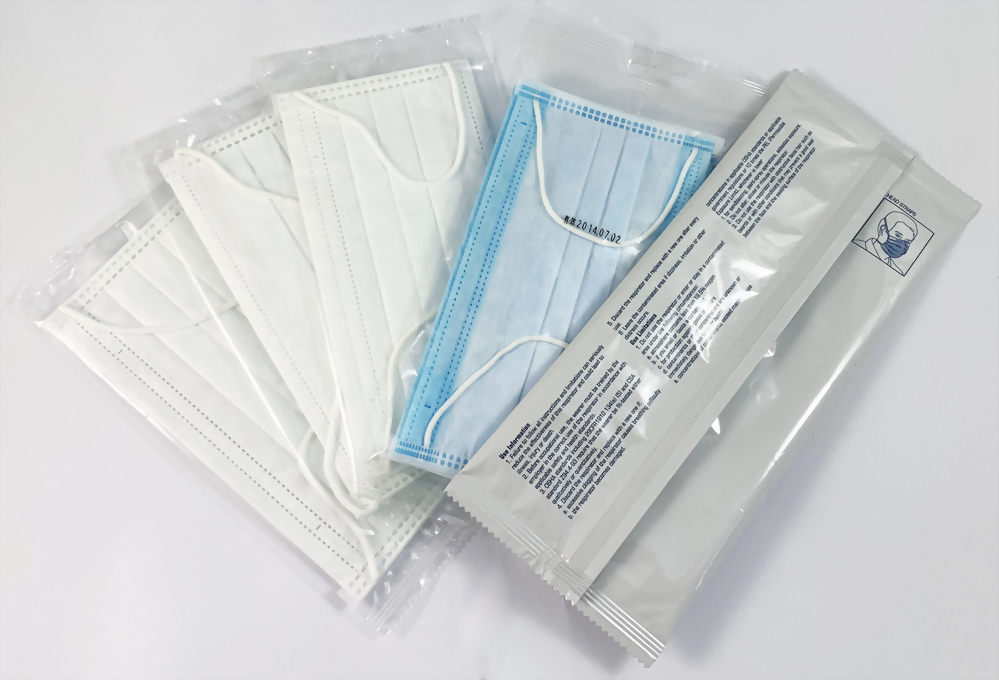

Apply for MEDICAL Mask,Surgical Mask,N95/ 3M Medical Mask / 3D Mask / KF94 and Child mask with high speed packing
